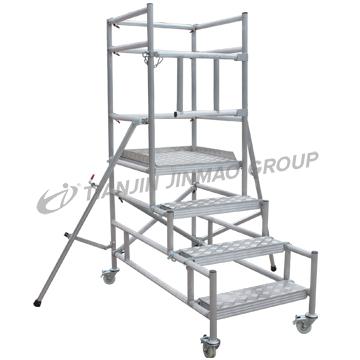

AOB16-3
Aluminum single access work platform
EN131 standard.
Loading capacity:150kg
Knock-down construction for easy transportation and storage
Easy locking guardrail.
large 700x650mm aluminum platform
Saftey stabilizer
Castors for moving easily.
Item No. | Step | Bottom length (mm) | Bottom width (mm) | Top platform Height(mm) | Total Height (mm) | Approx. Wt (kg) | Approx.Cu.Meter
Per Unit | 20' | 40H |
| AOB16-2 | 2 | 1300 | 790 | 770 | 1990 | 46.0 | 0.25 | 118 | 275 |
| AOB16-3 | 3 | 1500 | 790 | 1020 | 2240 | 51.5 | 0.32 | 92 | 220 |
| AOB16-4 | 4 | 1750 | 790 | 1270 | 2490 | 61.0 | 0.41 | 74 | 170 |
| AOB16-5 | 5 | 2000 | 790 | 1520 | 2740 | 74.5 | 0.47 | 64 | 149 |
