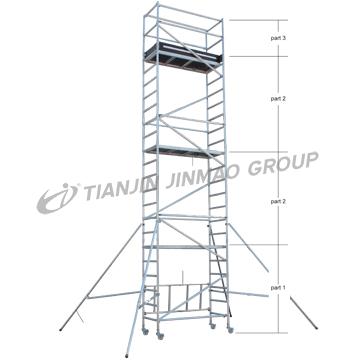

AOB15-6
Economic aluminum portable scaffold
EN131 standard with GS certificate
The maximum platform safe loading capacity 150kg per square meter;
Spacing between rungs：285mm
Slip resistant platforms with self locking system
Adjustable support legs and locking castors
Rigid construction for outdoor/indoor use
Item No. | Components | Scaffold Width (mm) | Scaffold Length (mm) | Top platform height (mm) | Total Height (mm) | Approx. Wt (kg) | Approx.Cu.Meter Per Unit | 20' | 40H |
| AOB15-2 | part1+part3 | 720 | 1600 | 1800 | 2700 | 56 | 0.525 | 56 | 134 |
| AOB15-4 | part1+ part 2+part3 | 720 | 1600 | 3800 | 4700 | 125 | 0.76 | 38 | 90 |
| AOB15-6 | part1+2x part 2+part3 | 720 | 1600 | 5800 | 6700 | 158 | 0.99 | 30 | 69 |
