AOB13-6
Industrial aluminum portable scaffold
EN131 standard with GS certificate
The maximum platform safe loading capacity 200kg per square meter;
The total maximum platform safe loading capacity is 500kg
Spacing between rungs：274mm
Slip resistant platforms with self locking system
Adjustable support legs and locking castors
Rigid construction for outdoor/indoor use
Item No. | Components | Scaffold Width(mm) | Scaffold Length (mm) | Top platform height (mm) | Total Height (mm) | Approx. Wt (kg) | Approx.Cu.Meter Per Unit | 20' | 40H |
| AOB13-4 | part1+ part 2+part3 | 1350 | 1880 | 3800 | 4750 | 178 | 1.5 | 18 | 40 |

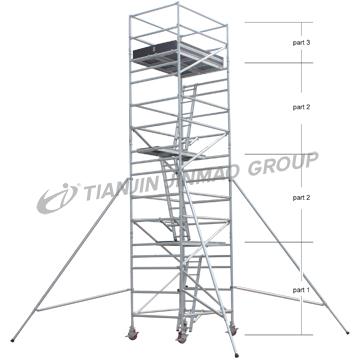

| AOB13-6 | part1+ 2xpart 2+part3 | 1350 | 1880 | 5760 | 6720 | 257 | 2.0 | 14 | 32 |
| AOB13-8 | part1+ 3xpart 2+part3 | 1350 | 1880 | 7730 | 8690 | 308 | 2.6 | 11 | 25 |
| AOB13-10 | part1+ 4x part 2+part3 | 1350 | 1880 | 9700 | 10660 | 359 | 3.1 | 9 | 21 |
| AOB13-12 | part1+ 5x part 2+part3 | 1350 | 1880 | 11670 | 12630 | 409 | 3.7 | 7 | 16 |
