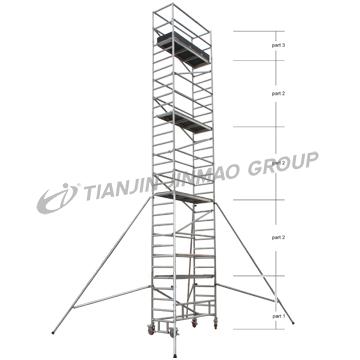

AOB12-8
Professional industrial Scaffold
EN1004 standard,approved with GS certificate.
Platform loading capacity: 200kg/sqm, Total platform loading capacity:500kg
Light weight industrial aluminum extruded profile,ribbed rung tubing for increased grip.260mm easy climb frame rung spacing.
Slip resistant platform with self loking system
Horizontal brace used as guardrails
Adjustable support legs
Can be mixed and matched freely.
Fully repariable and easy assembly operation,transport and store.
Ideal for lift shaft installation,maintenance and servicing.
Item No. | Components | Scaffold Width(mm) | Scaffold Length(mm) | Top platform height (mm) | Total Height (mm) | Approx. Wt (kg) | Approx.Cu.Meter Per Unit | 20' | 40H |
| AOB12-4 | part1+ part 2+part3 | 750 | 1880 | 3480 | 4480 | 133 | 1.14 | 26 | 60 |
| AOB12-6 | part1+ 2xpart 2+part3 | 750 | 1880 | 5560 | 6560 | 206 | 1.48 | 20 | 45 |
| AOB12-8 | part1+ 3xpart 2+part3 | 750 | 1880 | 7640 | 8640 | 248 | 1.85 | 16 | 36 |
| AOB11-10 | part1+4x part 2+part3 | 750 | 1880 | 9720 | 10720 | 291 | 2.10 | 14 | 32 |
| AOB11-12 | part1+5x part 2+part3 | 750 | 1880 | 11800 | 12800 | 333 | 2.46 | 12 | 27 |
