FO46-208

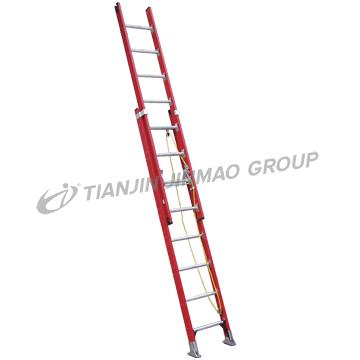

New-type fiberglass extension ladder
EN131 standard
Loading capacity:150kgs
Spacing between rungs：300mm
Anti-slip D-rungs and there are guides at top of base section
Replaceable rungs
Gravity spring locks could lock easily when in use
Metal and rubber slip-resistant foot pad
| Item No. | Step | Closed length (mm) | Fully opened length (mm) | Top width (mm) | Bottome width (mm) | Approx. Wt (kg) | Approx.Cu.Meter
Per Unit | Pack Size (cm) | 40H |
| FO46-208 | 2x8 | 2584 | 4084 | 340 | 470 | 15.60 | 0.210 | 262x48x16.5 | 350 |
| FO46-210 | 2x10 | 3184 | 5284 | 340 | 470 | 18.75 | 0.262 | 322x48x16.5 | 240 |
| FO46-212 | 2x12 | 3784 | 6484 | 340 | 470 | 21.85 | 0.296 | 382x48x16.5 | 240 |
| FO46-214 | 2x14 | 4384 | 7684 | 340 | 470 | 24.95 | 0.344 | 442x48x16.5 | 160 |
