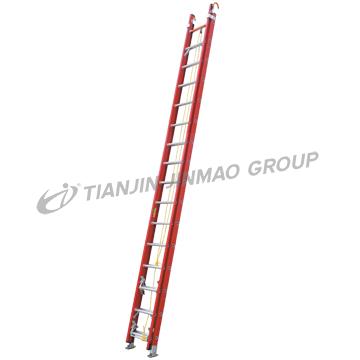

LCS500GFA1HB
Professional fiberglass extension ladder
EN131 standard
Loading capacity:150kgs
Spacing between rungs：300mm
Hook and belt improve the working safety
Anti-slip D-rungs and there are guides at top of base section
Swage structure between rungs and frame
Gravity spring locks could lock easily when in use
Metal and rubber slip-resistant foot pad
| Item No. | Step | Closed length (mm) | Fully opened length (mm) | Top width (mm) | Bottome width (mm) | Approx. Wt (kg) | Approx.Cu.Meter
Per Unit | Pack Size (cm) | 40H |
| LCS500GFA1HB | 2x16 | 4995 | 8895 | 400 | 485 | 34.7 | 0.489 | 511x50x19 | 122 |
| LCS560GFA1HB | 2x18 | 5595 | 9795 | 400 | 485 | 39.5 | 0.546 | 564x50x19 | 122 |
| LCS620GFA1HB | 2x20 | 6195 | 10695 | 400 | 485 | 43.5 | 0.605 | 624x50x19 | 61 |
| LCS680GFA1HB | 2x22 | 6795 | 11895 | 400 | 485 | 49.5 | 0.686 | 686x50x20 | 57 |
