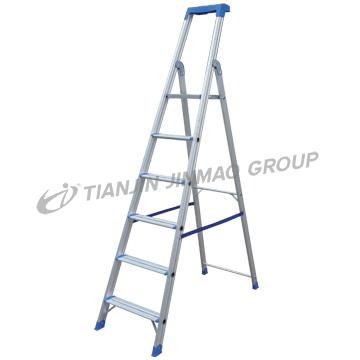

AO14-106
Aluminum household ladder
EN131 standard
Loading capacity:150kgs
Spacing between steps:280mm
Multi-function top cap,aluminum platform,swage structure
3～8 steps available
Item No. | Step | Opening Height (mm) | Platform Height (mm) | Depth (mm) | Width (mm) | Approx. Wt (kg) | Approx.Cu.Meter
Per Unit | Pack Size (cm) | 40H |
| AO14-103 | 3 | 1310 | 725 | 700 | 429 | 3.80 | 0.0630 | 141X43X12 | 1080 |
| AO14-104 | 4 | 1570 | 986 | 877 | 459 | 4.60 | 0.0840 | 169X48X12 | 820 |
| AO14-105 | 5 | 1830 | 1250 | 1054 | 489 | 5.50 | 0.1010 | 197X49X12 | 682 |
| AO14-106 | 6 | 2090 | 1508 | 1230 | 520 | 6.50 | 0.1120 | 225X52X12 | 615 |
| AO14-107 | 7 | 2350 | 1770 | 1407 | 552 | 7.65 | 0.1310 | 253X55X12 | 510 |
| AO14-108 | 8 | 2610 | 2030 | 1584 | 585 | 8.90 | 0.1500 | 281X58X12 | 384 |
